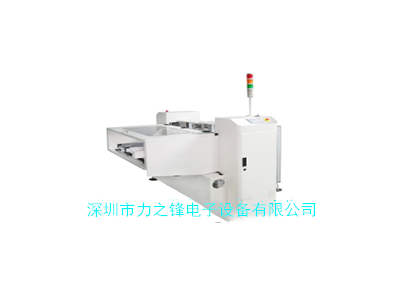

Purpose: used behind AOI, the machine automatically transfers NG and OK by receiving AOI signal
Boards are automatically stored separately
1) Overall dimension: L2100 * W1840 * H1200mm
2) Special national standard aluminum profile guide rail and special Qianniao plastic chain
3) 90W table motor drives ball screw to lift Magazine step by step
4) Pneumatic clamp structure
5) Attached with a set of 0.9m long transplantable pusher
6) The specification of Magazine is L530 * W460 * H565mm
7) PCB specification is L530mm * W390mm
8) Direction: left to right
9) The lifting platform pitch is selected as 10, 20, 30, 40, 50
10) Xinjie PLC programmable controller control
11) It has the function of separating good and bad boards
12) The operation control panel is a display control touch screen
13) Power supply: single-phase 220V 50HZ
14) Air source: 0.4-0.6MPa
15) One set of electric cabinet
